Used 1993 AMADA FBD 8020 | CNC Press Brakes
Have one to sell?
ConditionUsed
1 available

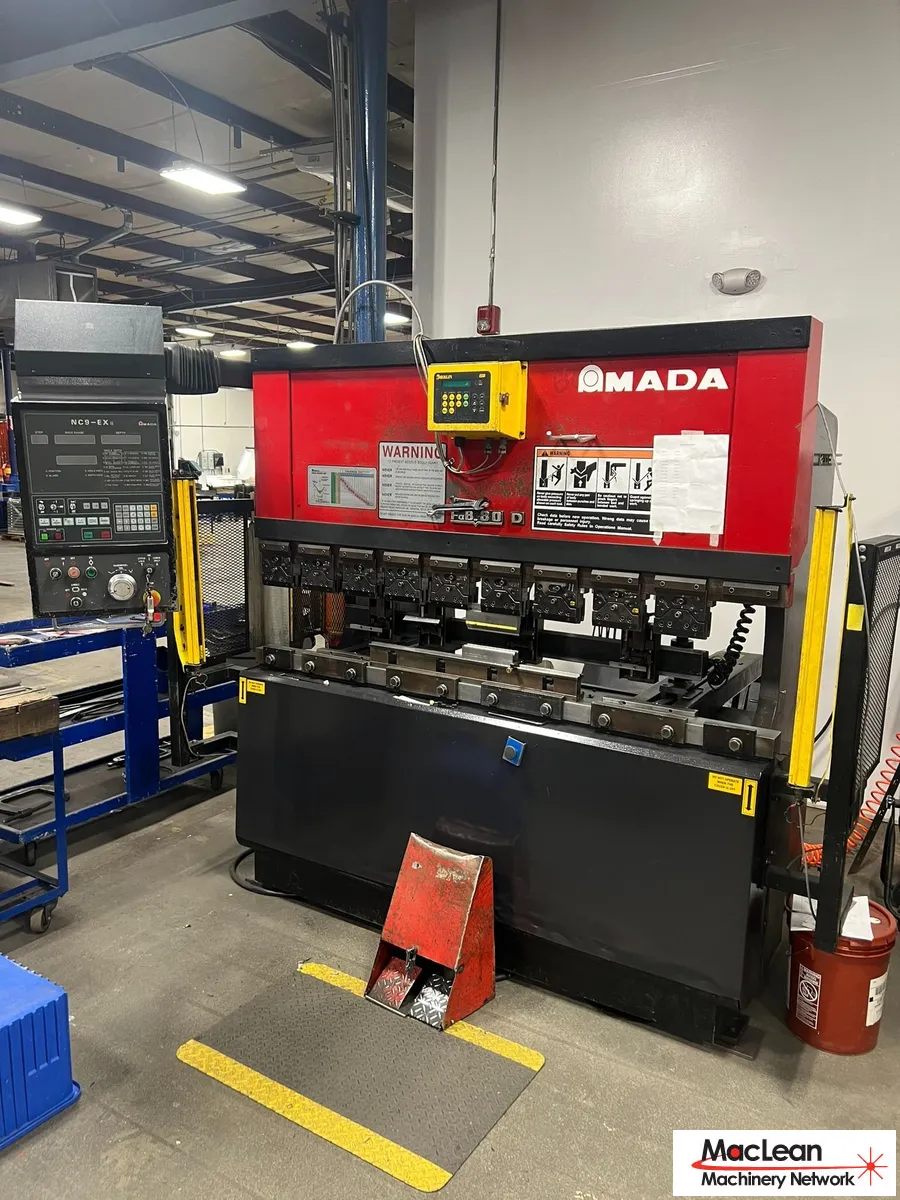

For sale: AMADA FBD 8020 CNC Press Brake, 1993, used. 88T capacity, 78.8" length, NC9EX control, 3-axis precision, efficient operation with innovative features for optimal bending performance.
Model FBD 8020 Maximum Tonnage 88 Maximum Bending Length 82"
Maximum Stroke Length 3.937"
Open Height 14.57"
Throat Depth 7.9"
Distance Between Side Frames 66.9"
Ram Speed: Approach 177 ipm
Bending 31 IPM
Return Speed 22 IPM
Electrical Requirements 220/460/3/60
CNC Control NC9EX-II
Designed specifically to enhance computer control.
Centralized controls provide quick, easy control of tonnage,
bending depth and stroke length adjustment.
Fully adjustable two speed operation.
Strategic placement of the cylinders creates an ideal deflection curve, eliminating the need to shim precision tooling. Angular accuracy is constant over the full part length.
Roller guiding system eliminates all ram/guide freeplay and wear.
Tonnage limiter and gauge protect tooling and increase safety.
Exclusive handwheel depth control simplifies set-up and reduces scrap.
Sectionalized punch holders allow deep box forming and can create windows for long return flanges
Electric Footswitch for easy Ram Control
Exclusive tool holders simplify procedures and reduce tooling set-up time.
NC9EX-II Amada 3 Axis CNC Control
Merlin Light Guards
