New 2023 ROLLERI UP Grind | General Fab
Have one to sell?
ConditionNew
1 available
New

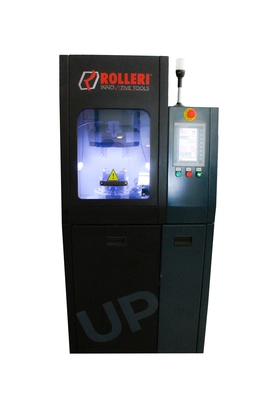

Rolleri UP GRIND , Automatic Tool Grinder
Maximum Tool Size 6.30"
Maximum Grind .039"
Main Axis Rotation Speed 3000 RPM
Main Axis Travel 6.69" (to chuck jaws)
Table Rotation Speed 72 IPM
Main Axis Feed High 11.2 IPM
Low .002 IPM
Grinding Wheel 7.87 dia
Power Supply 220 VAC, 3 phase, 2.5kVA
Machine Weight 725 lbs
*Specifications Subject to Verification
UP-GRIND FEATURES:
Robust construction
Fully Aluminum constructed grinding area
Sensor less Automatic height sensing of tools (never need any adjustment)
High Capacity Cooling Tank with triple filtration (40lt)
Easy To Use Siemens Touch Screen HMI
Information panel of operations and alarms in progress
Sliding door with Security switch
No additional accessories needed for tool clamping
Straight and angular grinding
Tool Drawer
Grinding pressure controlled
Automatic grinding speed adjustment
Illuminated Grinding Area
Security sensor equipped doors
High Quality Grinding Wheel
Washing system with water gun
DELIVERY IS 6~8 WEEKS FROM P.O.
