1989 AMADA RG 125 EX IICNC Press Brakes

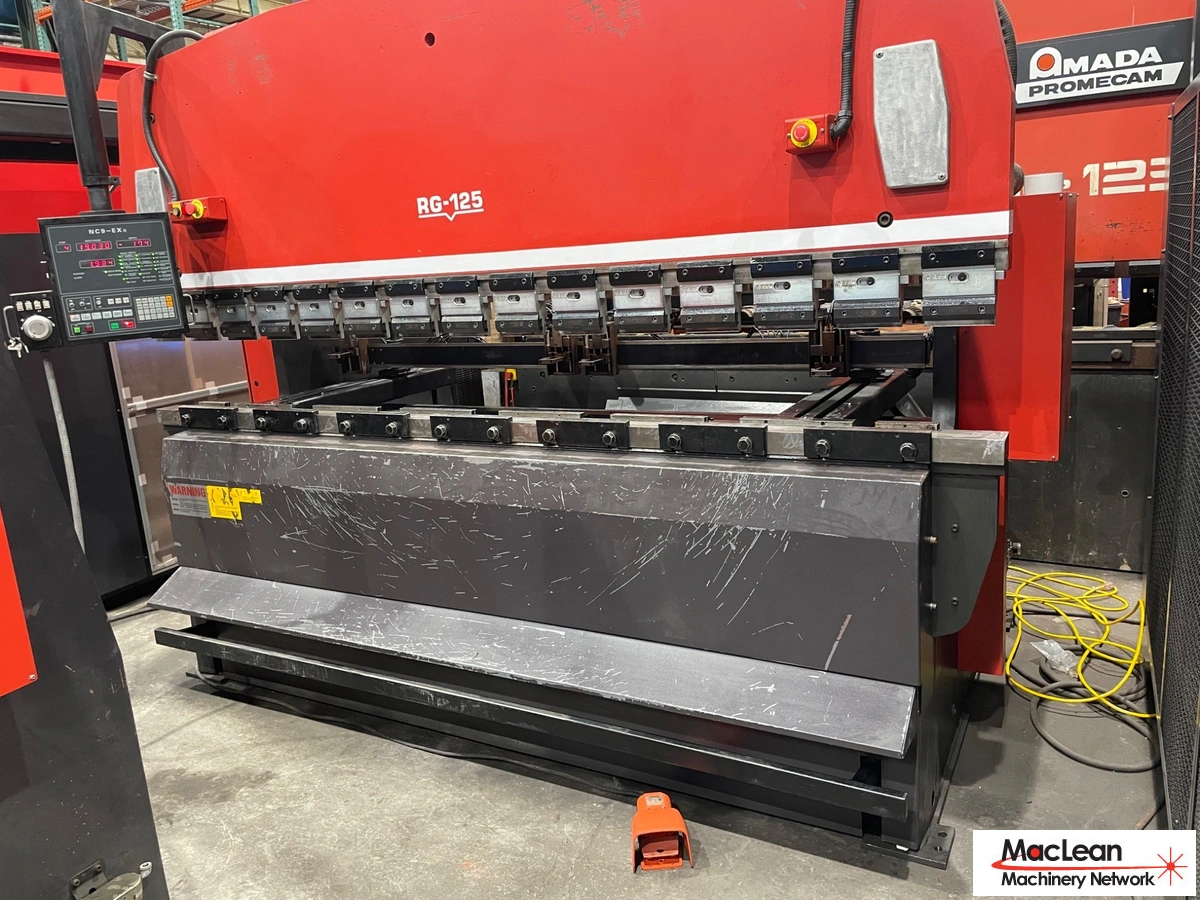

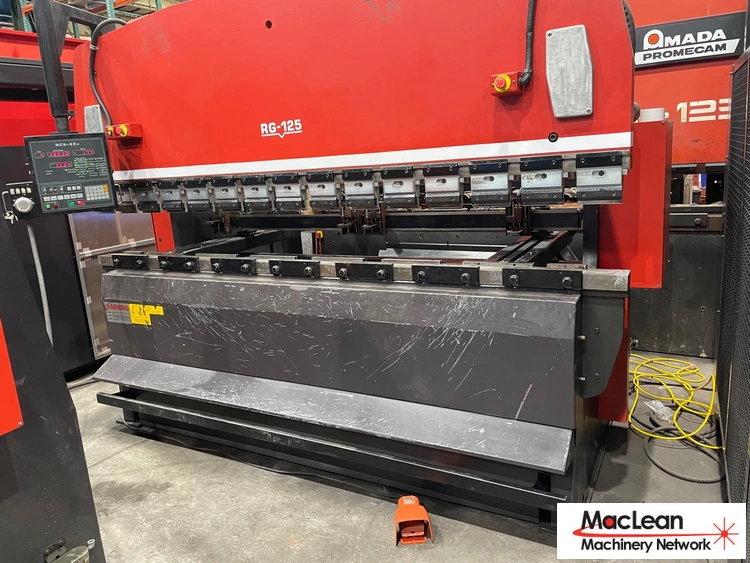

Used Amada Press Brake,Model RG 125 EX-II
Model RG 125 EXII
Maximum Tonnage 137 Tons
Maximum Bending Length 120.28"
Maximum Stroke Length 3.937"
Open Height 14.57"
Throat Depth 15.75"
Distance Between Side Frames 100.39"
Ram Speed: Approach 1.8"/sec.
Return Speed 1.38"/sec.
Electrical Requirements 10hp, 220/3/60
CNC Control NC9EX-II
Machine Weight 15,653
Designed specifically to enhance computer control.
Centralized controls provide quick, easy control of tonnage, bending depth and stroke length adjustment.
Fully adjustable two speed operation.
Strategic placement of the cylinders creates an ideal deflection curve, eliminating the need to shim precision tooling. Angular accuracy is constant over the full part length.
Roller guiding system eliminates all ram/guide freeplay and wear.
Tonnage limiter and gauge protect tooling and increase safety.
Exclusive handwheel depth control simplifies set-up and reduces scrap.
Sectionalized punch holders allow deep box forming and can create windows for long return flanges.
Smooth throttle action pedal increases operator control and safety.
Treadle safety shield.
NC9EX-II Amada 3 Axis CNC Control
Electro Pneumatic Footswitch
