New Kentek "Laser In Use" Illuminated Sign | Laser Welding Screens, Barriers, & PPE

Description

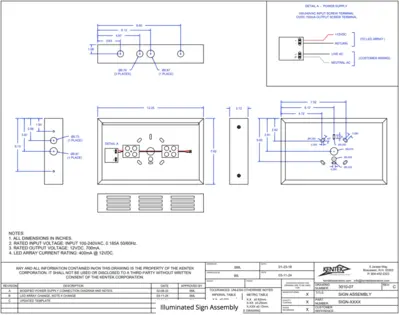

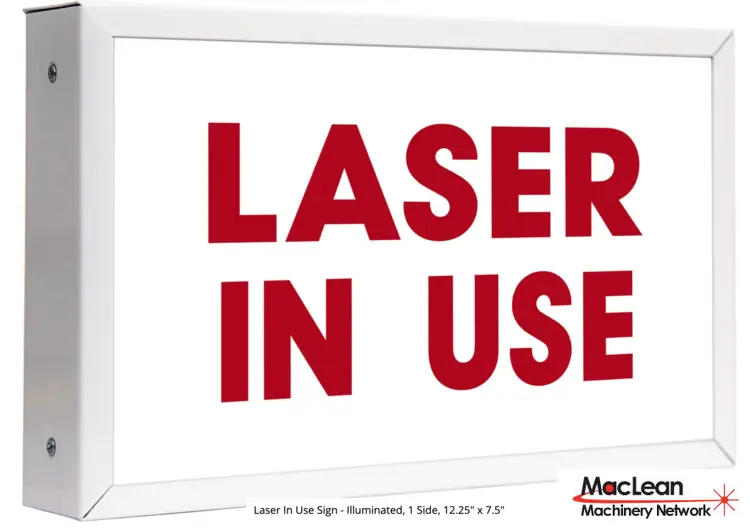

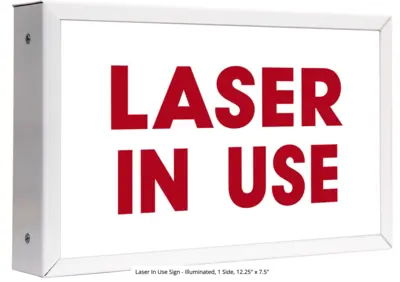

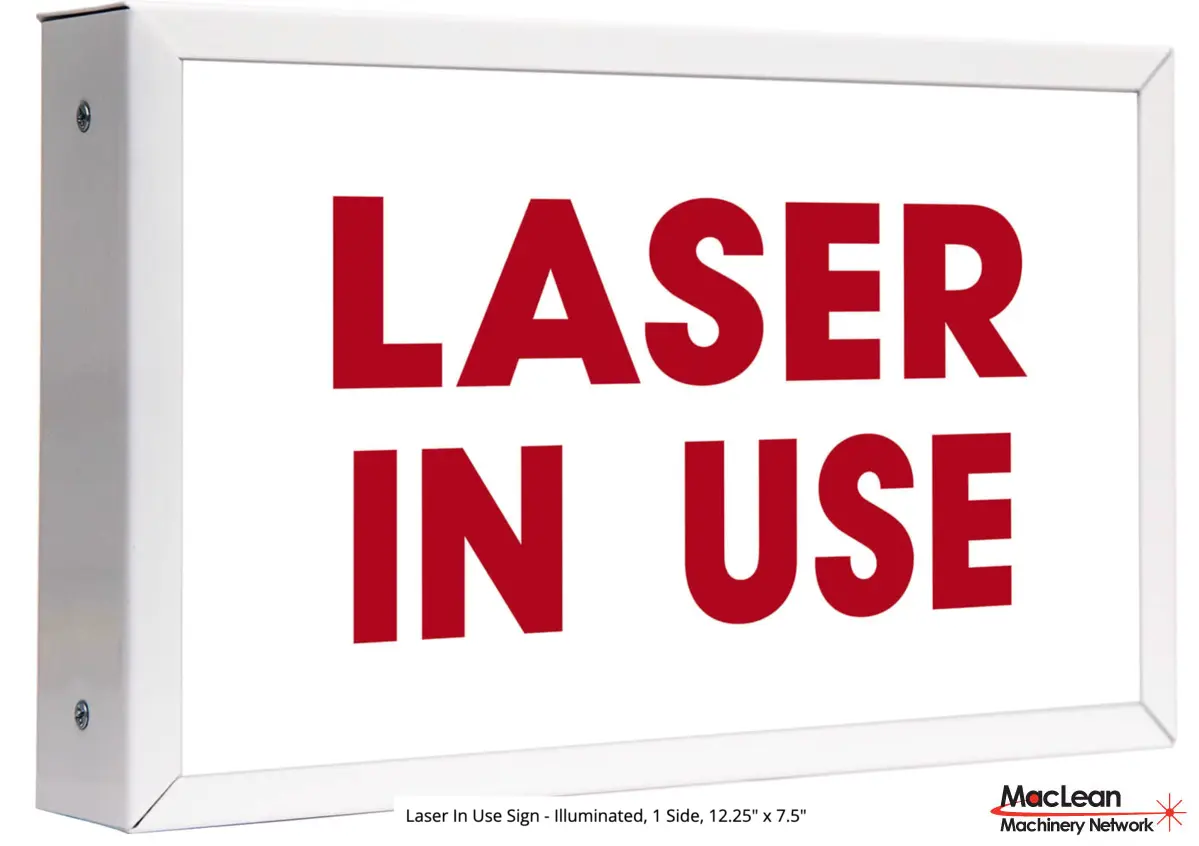

This LASER IN USE Sign measures 12.25 x 7.61 x 2.12 inches [311.2 x 193.3 x 53.9 mm] (W x H x D) and is illuminated on one side with a 12 V LED dc array. The removable plastic insert with the vinyl sign decal is installed into the sign housing.

This sign must be used in conjunction with an ANSI Z136.1-certified Laser Safety WARNING or DANGER Sign.

The LED array is FCC Approved, ISA Approved, RoHS Compliant and UL Recognized.

Hardwire input power to internal power supply or bypass power supply and connect 12 V dc directly to LED array leads.
Input Power for power supply connection; 100-240 V ac, 0.19 A 50/60 Hz, Output: 12 V dc, 700 mA.
LED array rating; 12 V dc, 280 mA current draw.
