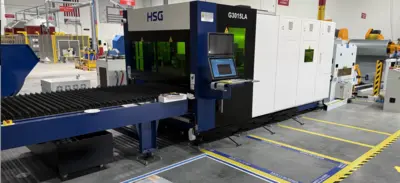

New HSG G3015LA30 3-6 kW Coil-Fed Fiber Laser Cutting Machine

<h2>Continuous coil-fed laser cutting without dedicated stamping dies</h2> <p>The <strong>HSG G3015LA30</strong> is a 3-6 kW <strong>coil-fed fiber laser cutting machine</strong> that combines uncoiling, leveling, feeding, laser cutting and unloading in one continuous production line. Its 118.1 x 59.1 in cutting window, 1.5G acceleration and 492 ft/min maximum linkage speed are designed for manufacturers producing repeat sheet-metal parts directly from coil stock.</p> <p>Also described as a <strong>coil laser cutting line</strong>, <strong>laser blanking system</strong> or sheet-metal coil laser cutter, the GL platform brings the flexibility of CNC laser cutting to applications that might otherwise require sheet handling, hard tooling or a conventional stamping line.</p> <h2>Who should consider the G3015LA30?</h2> <p>The strongest candidates are manufacturers with recurring demand for thin-to-medium-gauge blanks or finished profiles, frequent design changes, multiple part numbers or costly stamping dies. Typical applications include HVAC components, appliance parts, electrical enclosures, automotive and transportation components, shelving and storage products, commercial kitchen equipment and high-volume contract manufacturing.</p> <h2>One integrated line, four core functions</h2> <ul> <li><strong>Uncoiling:</strong> feed material from coil stock rather than manually loading individual sheets.</li> <li><strong>Leveling and feeding:</strong> prepare and advance the strip into the cutting system for continuous production.</li> <li><strong>Laser cutting:</strong> cut changing geometries without building a dedicated die for every part revision.</li> <li><strong>Unloading:</strong> move finished parts out of the cutting area and keep the production flow moving.</li> </ul> <p>The result is a flexible blanking workflow that can reduce manual sheet handling, shorten changeovers and allow manufacturers to respond faster when part designs or order quantities change.</p> <h2>Potential material and tooling savings</h2> <p>HSG states that the GL nesting system can improve material utilization by approximately 5-15% in suitable applications by supporting long nests and secondary nesting of leftover material. Actual savings depend on coil width, part geometry, edge requirements and production planning. The system also removes the need to purchase and maintain a dedicated stamping die for every laser-cut geometry.</p> <h2>Optional productivity configurations</h2> <p>The GL line can be configured around the production target. Options may include dual-head, triple-head or four-head cutting arrangements, synchronous or asynchronous cutting modes and multi-coil uncoiling equipment for faster changes between materials or thicknesses. Final options, coil handling, material range, controls, line layout and downstream unloading are engineered for the customer's parts and plant.</p> <h2>How it differs from a conventional flatbed laser</h2> <p>A flatbed laser loads discrete sheets onto a cutting table. The G3015LA30 feeds leveled strip continuously from a coil, which can reduce loading interruptions and sheet-by-sheet material handling. It is not automatically the best choice for every job shop: coil availability, part mix, material thickness, surface requirements and annual volume all matter. MacLean will compare the GL line against a conventional HSG flatbed before recommending it.</p> <h2>Configured to order, installed and supported by MacLean</h2> <p>The G3015LA30 is a configurable model family and is generally built around the application rather than sold as a fixed stock machine. MacLean Machinery is authorized to sell HSG equipment nationwide and primarily serves Georgia, Florida and the Greater Southeast. Installation and operator training are included. HSG factory-trained MacLean technicians directly perform service and repairs and coordinate with HSG technicians as needed.</p> <h2>Warranty</h2> <p>A machine warranty is included. Coverage varies with the final GL configuration, laser source, cutting head and written commercial terms. The complete warranty is supplied with the quotation so the customer can review the exact coverage before ordering.</p> <h2>Frequently asked questions</h2> <h3>What is a coil-fed laser cutting machine?</h3> <p>It is a CNC fiber laser line that pulls sheet metal from a coil, levels and feeds it, cuts programmed shapes, and moves the finished work out of the cutting area. It reduces the need to load individual sheets.</p> <h3>Can the G3015LA30 replace a stamping press?</h3> <p>It can replace or supplement stamping for many flexible blanking applications, especially where tooling cost, frequent revisions or changing batch sizes make hard dies unattractive. Very high-volume simple parts may still favor a dedicated press and die.</p> <h3>What is the cutting area?</h3> <p>The standard G3015LA30 cutting window is approximately 118.1 x 59.1 in (3000 x 1500 mm). Coil width, material thickness and downstream handling must be confirmed for the final line.</p> <h3>Does it require a die or mold?</h3> <p>No dedicated cutting die is required for laser-cut geometry. New part shapes are produced through programming and nesting, subject to the machine's process limits.</p> <h3>Is the G3015LA30 in stock?</h3> <p>This model is typically configured and built to order. Equipt shows one system available for sale because the page represents one configurable production line; the final build schedule and delivery date are confirmed with the quote.</p> <h2>Start the conversation</h2><p><strong>Call 770-934-6500</strong> to start the conversation, or use the Request Quote form on this page. Include your material, thickness, part size or tube length, production volume, and any loading, unloading or automation requirements. MacLean Machinery will help configure the right HSG system, confirm current U.S. availability or factory lead time, and provide the final scope, installation, training and warranty in writing.</p>
